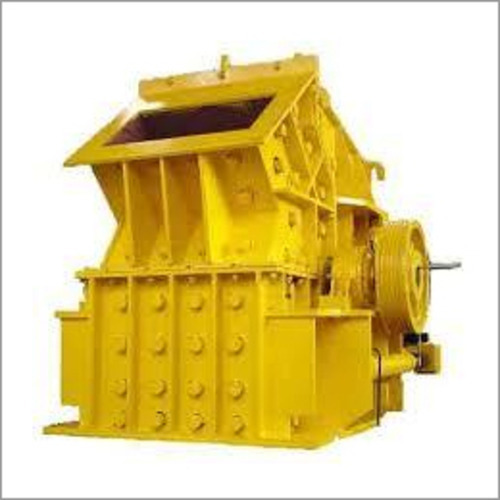

Horizontal Shaft Impactor Crusher

Horizontal Shaft Impactor Crusher

Product Details:

  • Product Type Impactor Crusher
  • Material Stainless Steel
  • Computerized No
  • Automatic Yes
  • CNC Or Not Normal
  • Control System PLC Control
  • Feature High Performance ECO Friendly Low Noise Lower Energy Consumption High Efficiency
  • Click to view more
X

Horizontal Shaft Impactor Crusher Price and Quantity

  • 1 Unit

Horizontal Shaft Impactor Crusher Specification

  • High Performance ECO Friendly Low Noise Lower Energy Consumption High Efficiency
  • No
  • Stainless Steel
  • Normal
  • PLC Control
  • Yellow
  • Impactor Crusher
  • 1 year
  • Yes

Horizontal Shaft Impactor Crusher Trade Information

  • 15 Unit Per Month
  • 7-15 Days
  • All India

Product Description

Enlisted in the line of reputed companies, we are known as a best manufacturer, supplier and exporter of Horizontal Shaft Impactor Crusher. In our manufacturing unit, these are made in supreme quality raw materials to provide high tensile strength and longer shelf life. Offered product is widely used to break the hard materials through the hammer connected with a rotor, which is aligned along the horizontal axis. These impact crushers are available in varied models that are further having varied throughput capacity. Moreover, owing to their durable construction and sudden-change wedge system, these work with extreme efficiency. Clients can place the order for these Horizontal Shaft Impactor in bulk to us at the nominal price range.

Features of Horizontal Shaft Impact Crusher:


1. Rotor speed can be altered, depending upon the gradation requirements

2. Both electric motor and diesel motor can be utilized for operating these impactors

3. Minimum power consumption

4. Wear parts can be easily replaced

5. Can crush the hard materials in less time

FAQ:


Q. What is a Horizontal Shaft Impactor (HSI) crusher?


Ans: A Horizontal Shaft Impactor (HSI) crusher is a type of crushing equipment used in various industries to reduce the size of large rocks, minerals, or other materials. It utilizes a horizontal shaft that rotates rapidly to break the material into smaller pieces.

Q. How does an Horizontal Shaft Impact Crusher work?


Ans: The HSI crusher works by impacting the material with hammers or blow bars fixed to the rotor. As the rotor rotates at high speed, the material is fed into the crushing chamber, and the kinetic energy from the rotating hammers causes the material to break into smaller pieces upon impact.

Q. What are the advantages of using an HSI crusher?


Ans: Some advantages of using an HSI crusher include:

1. High reduction ratio: HSI crushers can achieve high reduction ratios, making them suitable for various crushing applications.

2. Versatility: They can handle a wide range of materials, including soft to medium-hard rocks and minerals.

3. Low operating and maintenance costs: HSI crushers generally have lower operational and maintenance costs compared to other types of crushers.

4. Cubical-shaped product: HSI crushers produce cubical-shaped end products, which are desirable in many applications.

Q. What types of materials can an HSI crusher handle?


Ans: HSI crushers are commonly used for crushing a variety of materials, including limestone, granite, gravel, concrete, asphalt, and other similar materials.

Q. What is the difference between HSI and VSI (Vertical Shaft Impactor) crushers?


Ans: The primary difference between HSI and VSI crushers is the type of crushing action they perform. While HSI crushers use impact force to break the material, VSI crushers use a high-speed rotor and anvils for impact crushing. VSI crushers are more suitable for shaping the end product and producing fine aggregates, while HSI crushers are better suited for primary and secondary crushing of larger materials.

Q. What are the key components of an HSI crusher?


Ans: The main components of an HSI crusher include:

1. Rotor: The horizontal shaft that holds the hammers or blow bars and rotates to impact the material.

2. Blow bars or hammers: Attached to the rotor, these components deliver the crushing force to the material.

3. Crushing chamber: The area where the material is fed and crushed.

4. Aprons: These are adjustable impact aprons that control the size of the output material.

5. Hopper: The container that holds the incoming material before it enters the crushing chamber.

Q. How to maintain an HSI crusher?


Ans: Proper maintenance is essential to ensure the efficient and reliable operation of an HSI crusher. Regular inspection, lubrication, and replacement of wear parts (such as blow bars or hammers) are crucial. It's also important to follow the manufacturer's maintenance schedule and guidelines for optimal performance.

Q. What safety precautions should be taken while operating an HSI crusher?


Ans: Operators should follow safety guidelines and wear appropriate personal protective equipment (PPE) while operating the crusher. It's important to keep hands and other body parts away from moving components during operation and to lock out/tag out the crusher during maintenance or repair work.

Q. What capacity range do Horizontal Shaft Impact Crushers offer?


Ans: HSI crushers come in various sizes and can offer a wide range of capacities depending on factors such as the feed material size, the type of material being crushed, and the required final product size. Capacities can range from a few hundred tons per hour to several thousand tons per hour.
