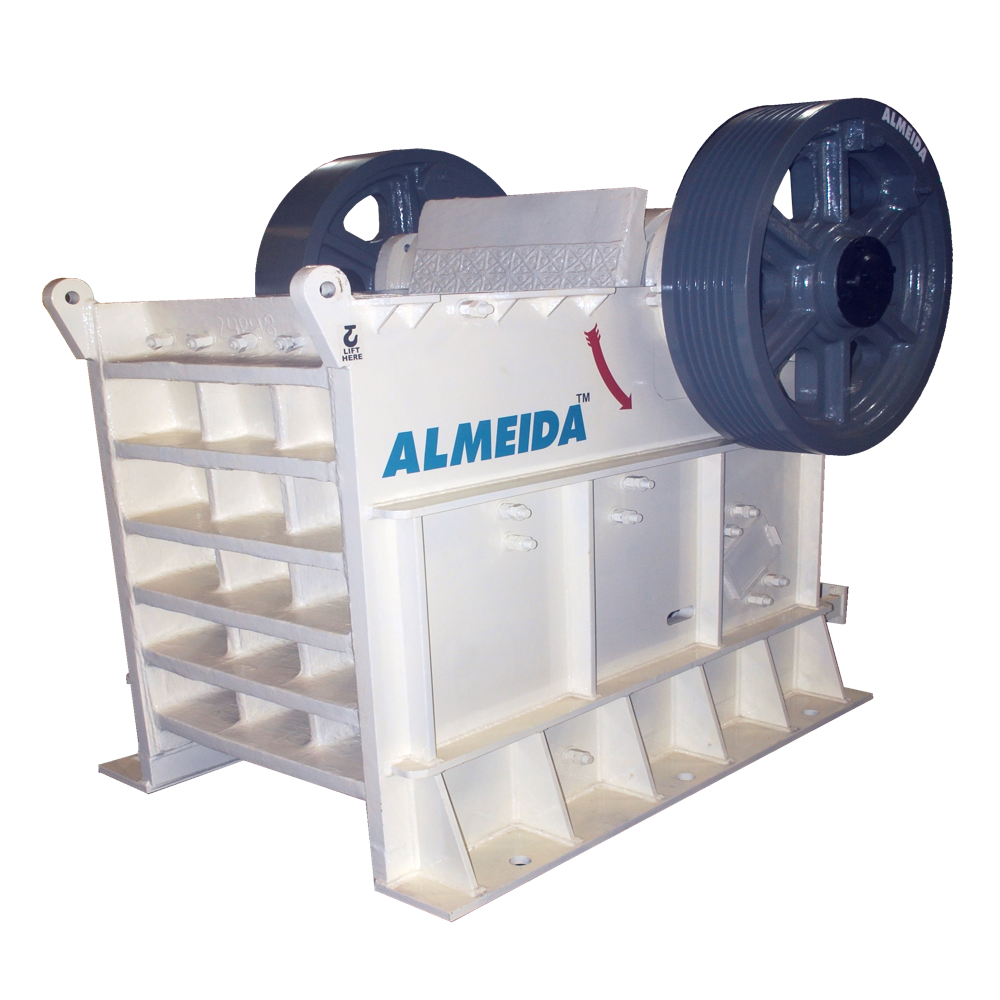

Developing our product line with increasing demands, we are manufacturing, supplying and exporting an exclusive range of Jaw Crusher. These are designed for crushing the hard and tough materials on large scale at the fastest rate. These types of crushers are basically find their applications in mining, recycling and quarrying industries. Our offered machines are reckoned among the most developed and reliable in the business, which are very beneficial in an assortment of uses. These machines are treasured for their excellent performance and the ability of working for long hours continuously, each day. We are able to provide varied models of Jaw Crusher machines in both customized and non-customized range at the competitive prices.
- Technologically advanced
- High throughput capacity
- Available for both stationary and mobile processes
- Excellent continuous crushing performance

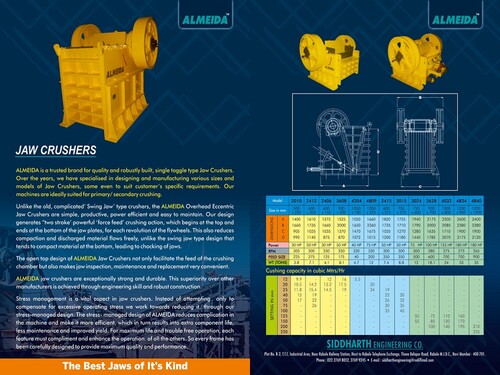

Crushing Capacity in Cubic MTS /HR
MAIN FRAME :
Through constant research, our engineers have selected heavy steel Plates (IS : 2062) For constructing the machine. Side wall plates are one piece mild steel plates. Mainframe is then fabricated with heavy embracing ribs to the side walls providing reinforcement at high stress points. It is then stress relieved in an arc furnace & is then accurately machined & leveled to assure you of increased life of the Main Axle, Roller Bearing etc.
PITMAN / JAW STOCK :
Is casted from cast steel & accurately bored on a Horizontal Boring Machine for correct fitting of Roller Bearings.
MAIN AXLE :
The Main Axle is precisely machined from Heat Treated EN Series Carbon - Steel rounds for correct fitting of Roller Bearings.
ROLLER BEARINGS :
Only Imported, high quality, extra heavy duty Roller Bearings are fitted to ensure smooth operation.
JAW PLATES & SIDE PLATES :
Manufactured from Manganese steel castings, the jaw plates are extra thick & deep ribbed to give longer life & better cubical production. Jaw plates are reversible, end for end to assure maximum wear life. Also our jaw plates are 'extra long' compared to other manufacturers.
Both fly wheels are casted from high-grade cast iron. One of the fly wheel is 'V' grooved to accommodate 'v' belts. Counterweights are added to balance the eccentricity on the main axle. The machine is then dynamically balanced.
Manufactured from EN 45A steel rounds, which is then short-pinned compressed to exact size for the right tension to prevent any unusual shock in the machine, Thereby protecting important pressure parts from overstress & Damage.
TOGGLE MECHANISM :
Our jaw crushers are of Single Toggle Type. Toggle plates, Toggle seats, shims and frame cross ties are arranged 'in-the' to assure even load distribution to the frame, preventing distortion & undue stress on bearing, pitman & shaft.
PITMAN ALIGNMENT :
All functional areas and surfaces are held precisely parallel to shaft & pitman bore through precise machining, eliminating stresses caused from binding.
