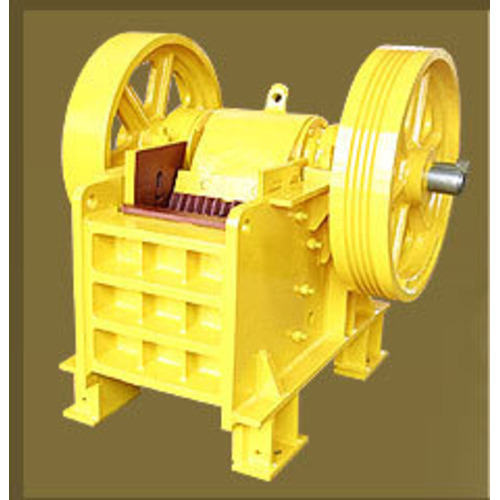

Primary Jaw Crushers

Primary Jaw Crushers
Primary Jaw Crushers
Product Code : PJC-01
Brand Name : Siddharth
Product Description

Primary Jaw Crushers

With vast industrial experience and help of skilled engineers, we are instrumental in manufacturing, supplying and exporting of Primary Jaw Crushers. These are designed in large crushing capacity for performing heavy duty applications such as crushing of largest boulders. These machines are suitable for crushing hard stones, for example, granite, brick, concrete etc. Basically, these machines employ mechanical pressure to complete their crushing function for which these are being installed. We manufacture these Primary Jaw Crushers under strict industrial norms and standards so that these can perform uninterrupted or trouble free operation. Our valuable clients can purchase these from us in different sizes and models; designed according to the hardness of materials.

Features:

  • Crush large stones into smaller pieces at higher speed rate
  • Reliable function
  • Equipped with advance technology
  • Use less energy and produce less noise therefore, environmental friendly

Applications:

  • Stone
  • Coal
  • Various minerals
  • Stone quarry
  • Coal slag

Specifications:

Size 350x200 400x250 500x250 600x300 600x150 900x150 1050x150 600x375 750x375 750x 450 900x600 1000x750
A 1110 1310 1400 1610 1375 1360 1360 1820 1755 1910 2050 2180
B 1110 1390 1480 1650 1365 1500 1500 1720 1700 2065 2410 2605
C 770 825 980 1020 980 1020 1020 1020 1020 1230 1240 1220
D 1150 1260 1660 1735 1660 1840 1960 1735 1710 1720 1905 2135
E 990 1045 1430 1555 1475 1800 1890 1575 1640 1656 1895 2065
F 720 800 905 1035 1035 1320 1470 1035 1270 1270 1600 1690
G 725 980 990 1140 875 990 990 1200 1180 1450 1790 1995
Power 20 25 30 50 30 50 60 50 60 75 100 125
RPM 300 300 300 300 300 300 300 300 275 275 265 265
Feed Size 175 225 225 275 125 124 125 350 350 450 600 760
WT (Tons) 2.1 2.9 3.8 6.7 3.9 5.5 6.5 7.2 8.8 10.5 17.2 24.0


Crushing Capacity in Cubic MTS /HR

12 2.6 5.2 9.9 - 12.0 16.0 21.0 - - - - -
20 2.9 5.8 10.5 14.2 13.2 17.5 23.0 - - - - -
25 3.2 6.4 11.8 15.4 14.5 19.0 25.5 19.0 - - - -
32 - 7.1 13.0 17.0 - - - 23.0 - -
40 - 8.5 15.0 19.0 - - - 26.0 32 - - -
50 - - 17.0 22.0 - - - 29 37 45 - -
75 - - - 26.0 - - - 35 144 54 70 -
100 - - - - - - - 41 52 63 85 115
125 - - - - - - - 47 60 72 98 140
150 - - - - - - - - - - 112 170
200 - - - - - - - - - - 150 200
250 - - - - - - - - - - 185 290

MAIN FRAME :

Through constant research, our engineers have selected heavy steel Plates (IS : 2062) For constructing the machine. Side wall plates are one piece mild steel plates. Mainframe is then fabricated with heavy embracing ribs to the side walls providing reinforcement at high stress points. It is then stress relieved in an arc furnace & is then accurately machined & leveled to assure you of increased life of the Main Axle, Roller Bearing etc.

PITMAN / JAW STOCK :

Is casted from cast steel & accurately bored on a Horizontal Boring Machine for correct fitting of Roller Bearings.

MAIN AXLE :

The Main Axle is precisely machined from Heat Treated EN Series Carbon - Steel rounds for correct fitting of Roller Bearings.

ROLLER BEARINGS :

Only Imported, high quality, extra heavy duty Roller Bearings are fitted to ensure smooth operation.

JAW PLATES & SIDE PLATES :

Manufactured from Manganese steel castings, the jaw plates are extra thick & deep ribbed to give longer life & better cubical production. Jaw plates are reversible, end for end to assure maximum wear life. Also our jaw plates are 'extra long' compared to other manufacturers.

FLYWHEELS :

Both fly wheels are casted from high-grade cast iron. One of the fly wheel is 'V' grooved to accommodate 'v' belts. Counterweights are added to balance the eccentricity on the main axle. The machine is then dynamically balanced.

SPRING :

Manufactured from EN 45A steel rounds, which is then short-pinned compressed to exact size for the right tension to prevent any unusual shock in the machine, Thereby protecting important pressure parts from overstress & Damage.

TOGGLE MECHANISM :

Our jaw crushers are of Single Toggle Type. Toggle plates, Toggle seats, shims and frame cross ties are arranged 'in-the' to assure even load distribution to the frame, preventing distortion & undue stress on bearing, pitman & shaft.

PITMAN ALIGNMENT :

All functional areas and surfaces are held precisely parallel to shaft & pitman bore through precise machining, eliminating stresses caused from binding.

Our other products :

  • Horizontal Shaft Impactors
  • Vertical Shaft Impactors
  • Vibrating / Rotary Screen
  • Belt Conveyor Systems
  • Grizzly
  • Reciprocating feeders
  • Erection of Crusher Plants on Turnkey Basis

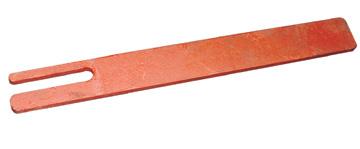

  • Spare Parts & Accessories
