Our company offers services for the Erection Of Crusher Plants On Turnkey Basis in which we handle all the procedures such as design, fabrication, installation, site preparation, testing, maintenance, and handover from very start to the end. We are using highly advanced technologies and premium-grade engineering materials that result in high working efficiency and structural durability. Customers can get services for Erection Of Crusher Plants On Turnkey Basis at a reasonable price range.
Technical Specification :

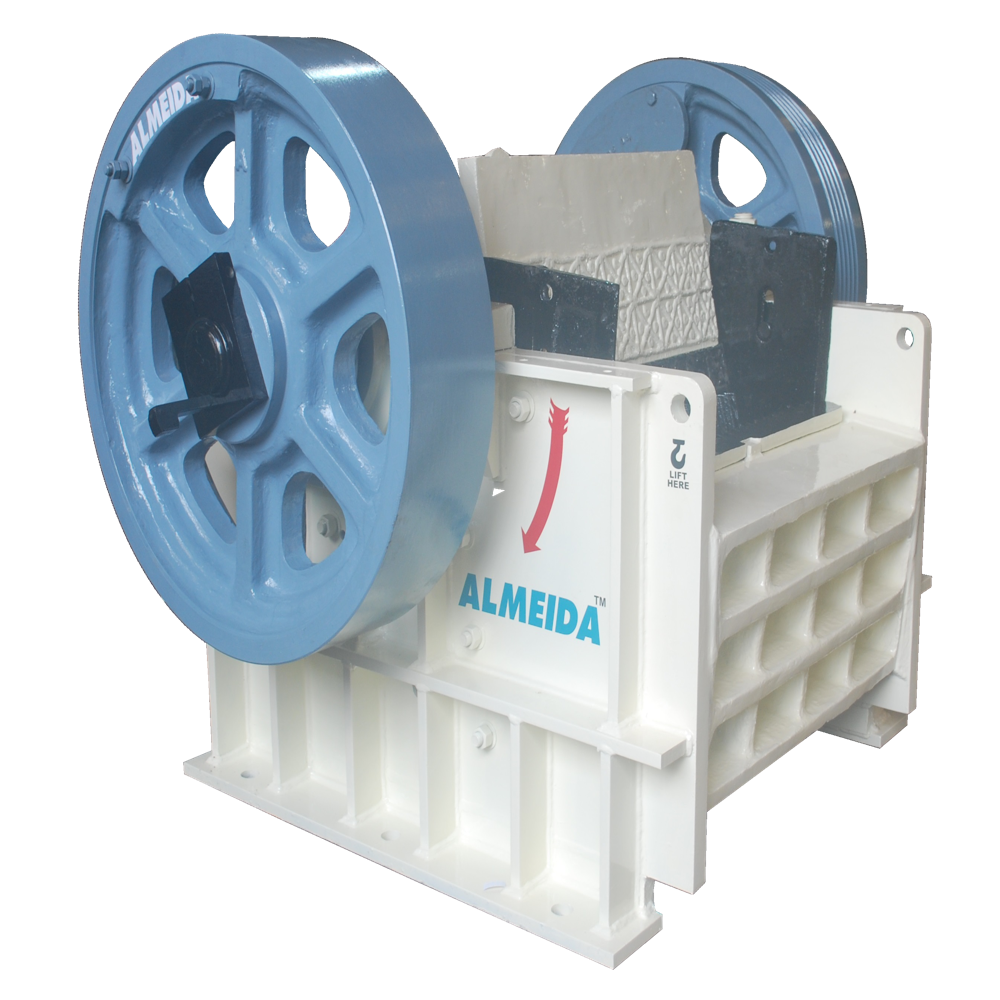

Crushers At A Glance
Size | 350x200 | 400x250 | 500x250 | 600x300 | 600x150 | 900x150 | 1050x150 | 600x375 | 750x375 | 750x 450 | 900x600 | 1000x750 |
A | 1110 | 1310 | 1400 | 1610 | 1375 | 1360 | 1360 | 1820 | 1755 | 1910 | 2050 | 2180 |
B | 1110 | 1390 | 1480 | 1650 | 1365 | 1500 | 1500 | 1720 | 1700 | 2065 | 2410 | 2605 |
C | 770 | 825 | 980 | 1020 | 980 | 1020 | 1020 | 1020 | 1020 | 1230 | 1240 | |
D | 1150 | 1260 | 1660 | 1735 | 1660 | 1840 | 1960 | 1735 | 1710 | 1720 | 1905 | 2135 |
E | 990 | 1045 | 1430 | 1555 | 1475 | 1800 | 1890 | 1575 | 1640 | 1656 | 1895 | 2065 |
F | 720 | 800 | 905 | 1035 | 1035 | 1320 | 1470 | 1035 | 1270 | 1270 | 1600 | 1690 |
G | 725 | 980 | 990 | 1140 | 875 | 990 | 990 | 1200 | 1180 | 1450 | 1790 | 1995 |
Power | 20 | 25 | 30 | 50 | 30 | 50 | 60 | 50 | 60 | 75 | 100 | 125 |
RPM | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 300 | 275 | 275 | 265 | 265 |
Feed Size | 175 | 225 | 225 | 275 | 125 | 124 | 125 | 350 | 350 | 450 | 600 | 760 |
WT (Tons) | 2.1 | 2.9 | 3.8 | 6.7 | 3.9 | 5.5 | 6.5 | 7.2 | 8.8 | 10.5 | 17.2 | 24.0 |
12 | 2.6 | 5.2 | 9.9 | - | 12.0 | 16.0 | 21.0 | - | - | - | - | - |
20 | 2.9 | 5.8 | 10.5 | 14.2 | 13.2 | 17.5 | 23.0 | - | - | - | - | - |
25 | 3.2 | 6.4 | 11.8 | 15.4 | 14.5 | 19.0 | 25.5 | 19.0 | - | - | - | - |
32 | - | 7.1 | 13.0 | 17.0 | - | - | - | 23.0 | - | - | | |
40 | - | 8.5 | 15.0 | 19.0 | - | - | - | 26.0 | 32 | - | - | - |
50 | - | - | 17.0 | 22.0 | - | - | - | 29 | 37 | 45 | - | - |
75 | - | - | - | 26.0 | - | - | - | 35 | 144 | 54 | 70 | - |
100 | - | - | - | - | - | - | - | 41 | 52 | 63 | 85 | 115 |
125 | - | - | - | - | - | - | - | 47 | 60 | 72 | 98 | 140 |
150 | - | - | - | - | - | - | - | - | - | - | 112 | 170 |
200 | - | - | - | - | - | - | - | - | - | - | 150 | 200 |
250 | - | - | - | - | - | - | - | - | - | - | 185 | 290 |
